Product DescriptionCompany Info.<>
- Brand:
- Paratronix
- Model:
- ETT-AM
- Processing customization:
- Yes
- Measuring range:
- 5KG, 20KG, 50KG (other ranges are optional KN
- Types:
- Electron
- Measurement accuracy:
- 0.3 level
- Maximum load:
- no KN
- Stretch space:
- See details page mm
- Stretching speed:
- 5.5~600 (arbitrarily adjustable) mm/min

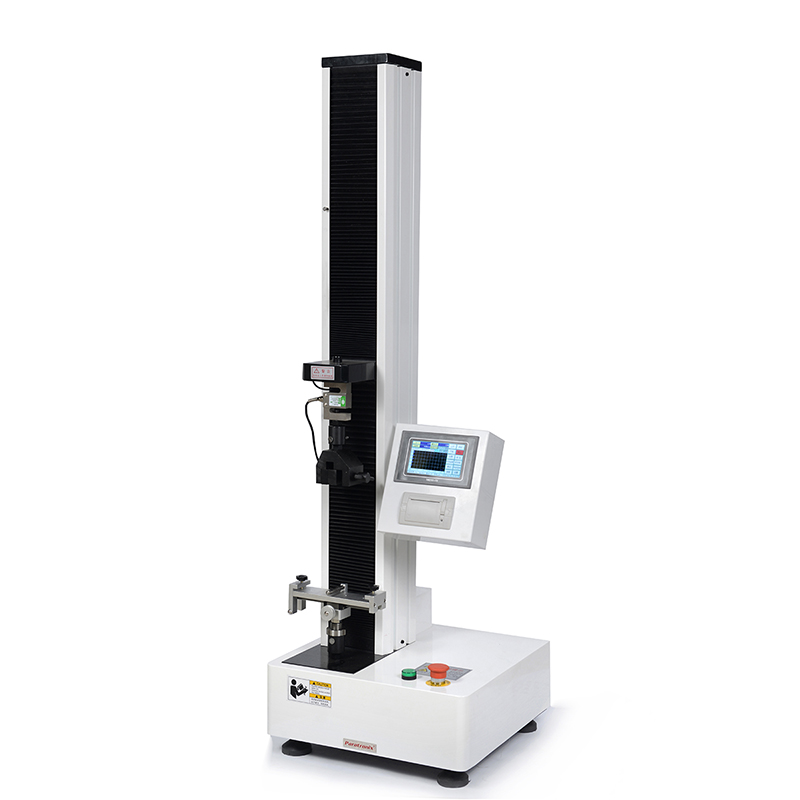

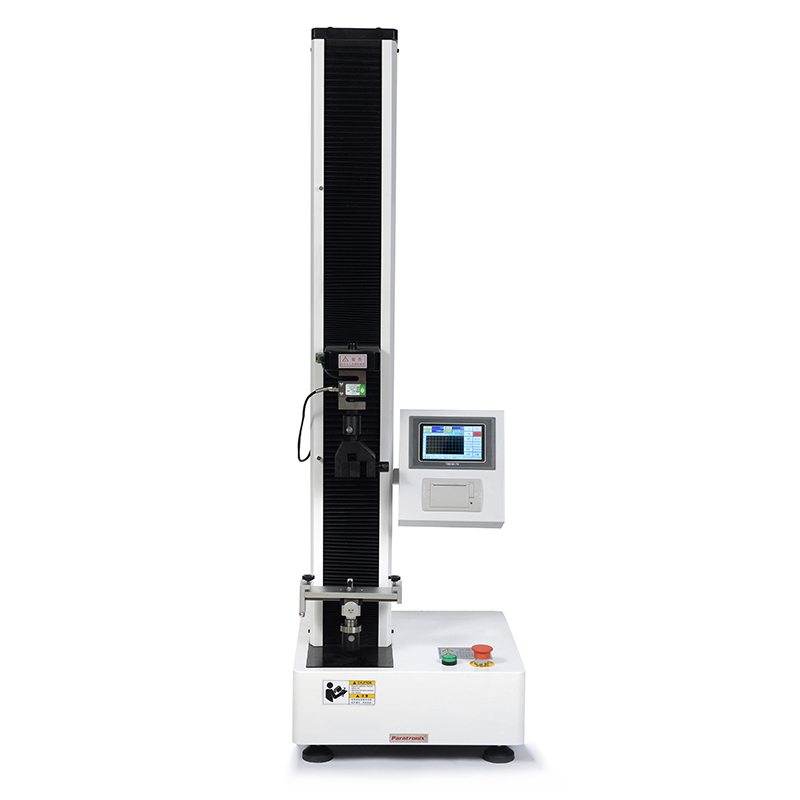

Electronic tensile testing machine Packaging bag testing instrument Paper, cardboard tensile strength testerproduct introduction
ETT series multi-purpose testing machine is a basic instrument for testing physical properties such as tension and pressure (tensile) of materials. Vertical, multi-column structure, chuck spacing can be arbitrarily set within a certain range, stretching stroke, up and down smooth operation, high test accuracy. The tensile testing machine is widely used in fiber, plastic, paper, cardboard, film and other non-metallic materials top pressure, flexible plastic packaging heat seal strength, tear, tensile, various puncture, compression, ampoule breaking force, 180 degrees peel, 90 degrees peel, shear force test items. At the same time, the instrument can measure paper tensile strength, tensile strength, elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index and other items. This product is suitable for medical, food, pharmaceutical, packaging, paper and other industries.
product characteristics
● Adopt the design method of imported instrument clamping, avoid the operator because of technical problems caused by detection errors
● Imported custom high sensitivity load cell, imported screw to ensure accurate displacement
● It can be arbitrarily selected in the speed range of 5-600mm/min. This function can meet the requirements of 180° peeling, ampoule breaking force, film tensile force and other samples.
● With tensile force, plastic bottle top pressure test, plastic film, paper elongation, tensile strength, paper breaking length, tensile energy absorption, tensile index, tensile energy absorption index and other functions
● Motor warranty 3 years, sensor warranty 5 years, 1 year warranty, is the domestic warranty * long products
● Ultra-long stroke and large load (500 kg) Structural design and flexible sensor selection facilitate multi-test project expansion
product standard
ISO 37、GB 8808、GB/T 1040.1-2006、GB/T 1040.2-2006、GB/T 1040.3-2006、GB/T 1040.4-2006、GB/T 1040.5-2008、GB/T 4850- 2002、 GB/T 12914-2008、GB/T 17200、 GB/T 16578.1-2008、 GB/T 7122、 GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、 GB15811、ASTM E4、ASTM D882、ASTM D1938、 ASTM D3330、ASTM F88、 ASTM F904、JIS P8113、 QB/T 2358、 QB/T 1130 、YBB332002-2015 、YBB00172002-2015 、YBB00152002-2015
Electronic tensile testing machine Packaging bag testing instrument Paper, cardboard tensile strength tester
Electronic tensile testing machine Packaging bag testing instrument Paper, cardboard tensile strength testerFAQ
Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.
Do you have any certificate?
We have passed ISO 9001, IPMS management system certificates, and have 22 utility model patents and 17 software copyright certificates.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.- Name（chinese）
