Product DescriptionCompany Info.<>
- Brand:
- Paratronix
- Processing customization:
- Yes
- Model:
- LT-02P
- Types:
- Negative pressure sealing tester
- Vacuum degree:
- 0~-97 Kpa
- Specifications:
- LT-02P
- Power source:
- 220v
- Overall dimension:
- 420（L）X 300（B）X 165（H） mm
- Weight:
- 15 kg
- Applicable scope:
- Food, pharmaceuticals, daily chemicals, electronics, etc.

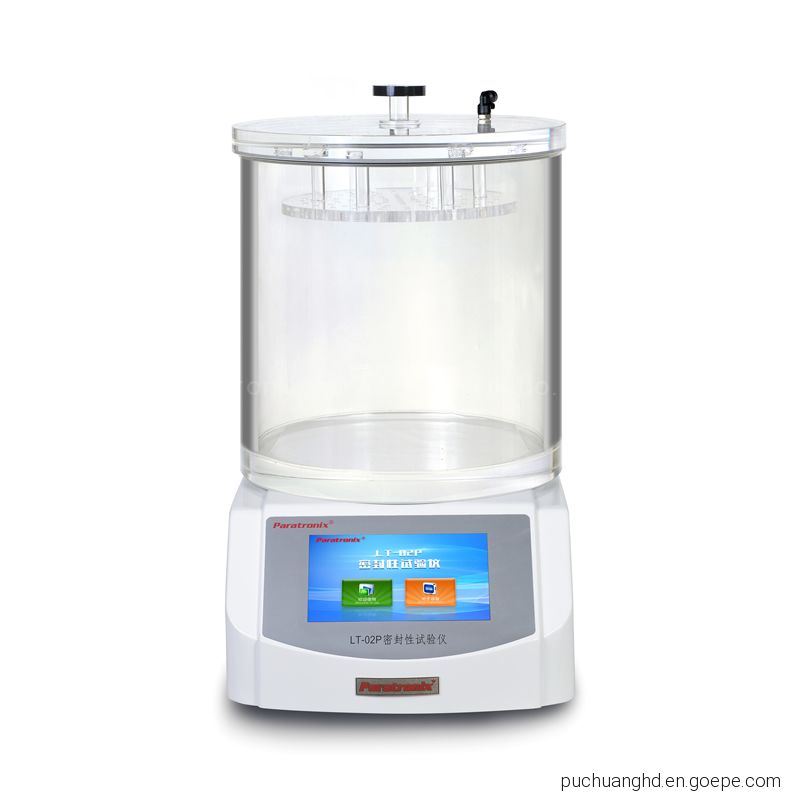

LT-02P Pharmaceutical blister packaging sealing tester Sealing tester
product introduction
LT-02P type sealing tester is suitable for sealing test of flexible packaging parts in food, pharmaceutical, daily chemical, electronic and other industries. Through testing, the sealing process and sealing performance of flexible packages can be effectively compared and evaluated, providing a scientific basis for determining relevant technical indicators. It is also possible to test the sealing performance of test pieces after drop and pressure tests. Compared with the traditional design, the intelligent test is truly realized: multi-group test parameter preset can greatly improve the detection efficiency; the pressure increment detection mode can quickly obtain the leakage parameters of the sample, and can also observe the creep and rupture and leakage of the sample under the stepped pressure environment and different holding time; the parameters and test results can be printed (printer optional)
product characteristics
● The test process is fully automatic, one key to complete the test
● Built-in high-precision sensor, faster response
● Multiple modes are selectable to meet the testing needs of different samples
● Each mode preset multiple sets of parameters, can be quickly selected for testing
● Double gas circuit design, more accurate test
● The number of test groups automatically accumulates, and the number of tests can be counted
● Optional stylus printer, can complete the test results save printing
● Test result saving, 500 query, print function (optional)
● Vacuum automatic maintenance and back blowing unloading
● Ultra-thick plexiglass vacuum chamber
● Pressure regulating system, easy to operate and maintain
● Three levels of management authority (to be purchased separately)
● Gradient supercharging mode is more humanized
● Real-time shutdown, pressure holding time, higher accuracy
technical parameters
Void 0~-97Kpa
Response speed <5 ms
Resolution 0.01 Kpa
Sensor accuracy ≤class 0.5
Built-in mode Single point mode, incremental mode
Display 7 inch touch screen
Voltage regulation range 0.2-0.7 Mpa
Interface size Φ6
Holding time 0-999999 s
Vacuum chamber Φ270 mm x 210 mm (H)
Φ360 mmx585 mm (H)
Φ460 mmx330 mm (H)
Equipment size 420 (L) X 300 (B) X 165 (H) mm
Compressed air (user-supplied)
Printing machine (optional) needle type
Data export USB flash drive/micro printer (optional)
Control mode SCM/computer (optional)
product standard
YBB00052005-2015、GB/T 15171，GB/T27728-2011、GB 7544-2009、ASTM D3078 ，YBB00122002-2015
LT-02P Pharmaceutical blister packaging sealing tester Sealing tester
LT-02P Pharmaceutical blister packaging sealing tester Sealing testerFAQ
Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.
Do you have any certificate?
We have passed ISO 9001, IPMS management system certificates, and have 22 utility model patents and 17 software copyright certificates.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.- Name（chinese）
